09 Sep Which EFS Shock Is Right for Your 4×4? A Straight-Talking Guide
Ask five people what shock absorbers do and you’ll get five answers, and most of them will be wrong. Shocks don’t hold your vehicle up. That’s the springs’ job. Shocks control what the springs do next.
Every bump, corrugation and dip loads energy into your springs. Without shocks, that energy keeps bouncing — the tyres skip off the surface, the vehicle wallows, and you lose grip exactly when you need it. A shock absorber’s job is to damp that movement out: keep the tyres planted, keep the vehicle stable and predictable, and stop you and your passengers getting hammered on a long day of corrugations.
So “which shock is best?” is the wrong question. The right one is: what does this vehicle actually do, and what does it carry?
Three questions worth answering honestly
How do you use it — daily driving, weekend touring, or genuinely rough tracks? What’s the load — empty tray most of the week, or permanently loaded with a canopy, drawers, water and a van on the back? And what do you want out of it — factory ride restored, or a setup you can tune?
EFS take the same view. In their words, they don’t build a “one shock suits all” product: their shocks and valving are vehicle- and height-specific. Here’s how the range stacks up.
ENFORCER — the straight swap
“My factory shocks are worn out and I just want them replaced properly.” EFS’s entry point and a direct replacement for your factory shocks. It runs a larger external tube than standard, which carries more oil and helps keep operating temperatures down, with twin-tube construction and a 15mm hardened chrome rod. If the vehicle is essentially stock and mostly does road work, this is the honest answer — you don’t need to spend more to get a good result.

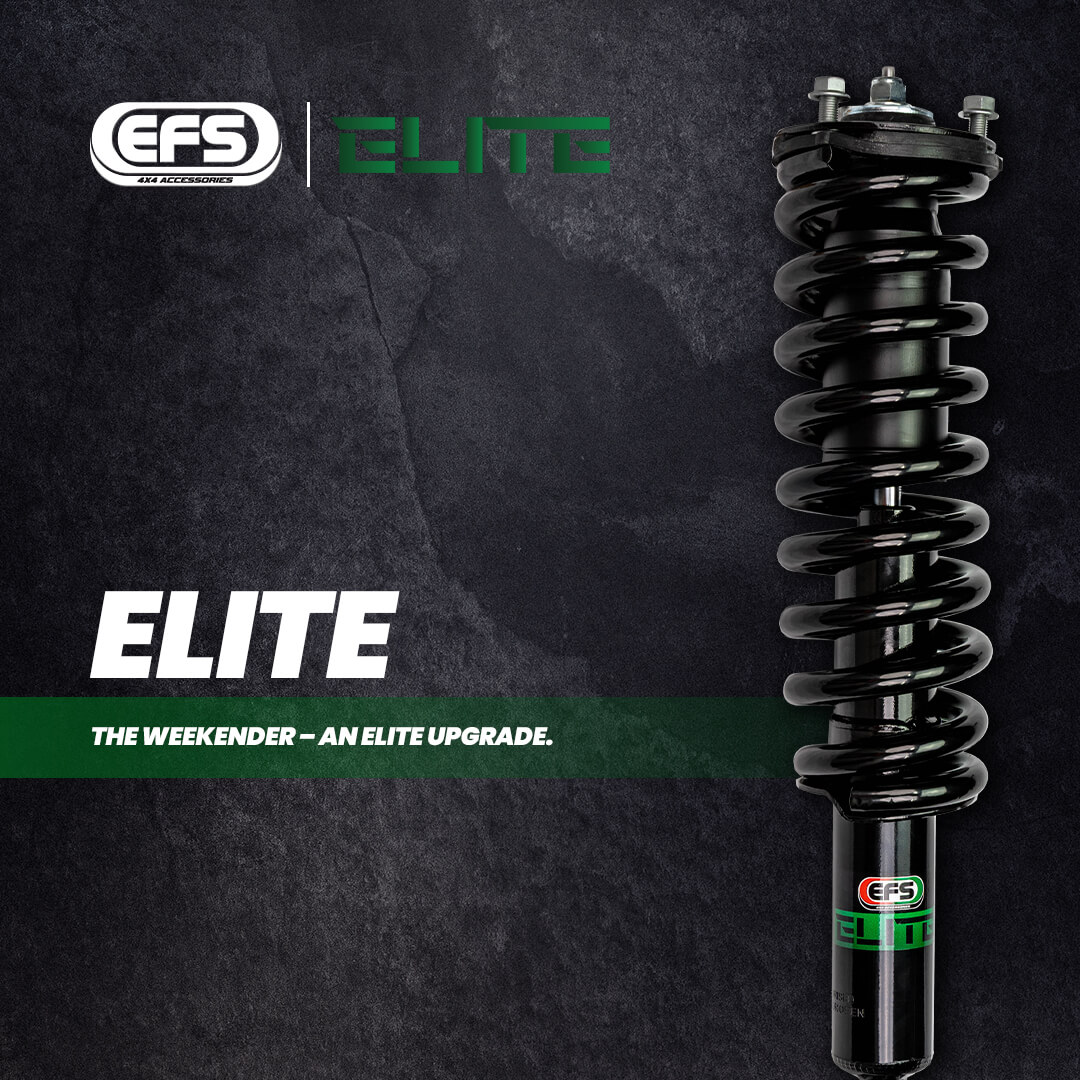

ELITE — everyday performance
“I want to replace my worn factory shocks with something better.” The all-rounder for mixed on-road and light off-road use. A 51–60mm external tube carries more oil than a factory shock, which keeps operating temperatures down, with a 35mm twin-tube piston and 16mm hardened chrome rod. If your 4×4 is mostly a road car that sees the odd gravel road and beach run, this is the sensible upgrade.

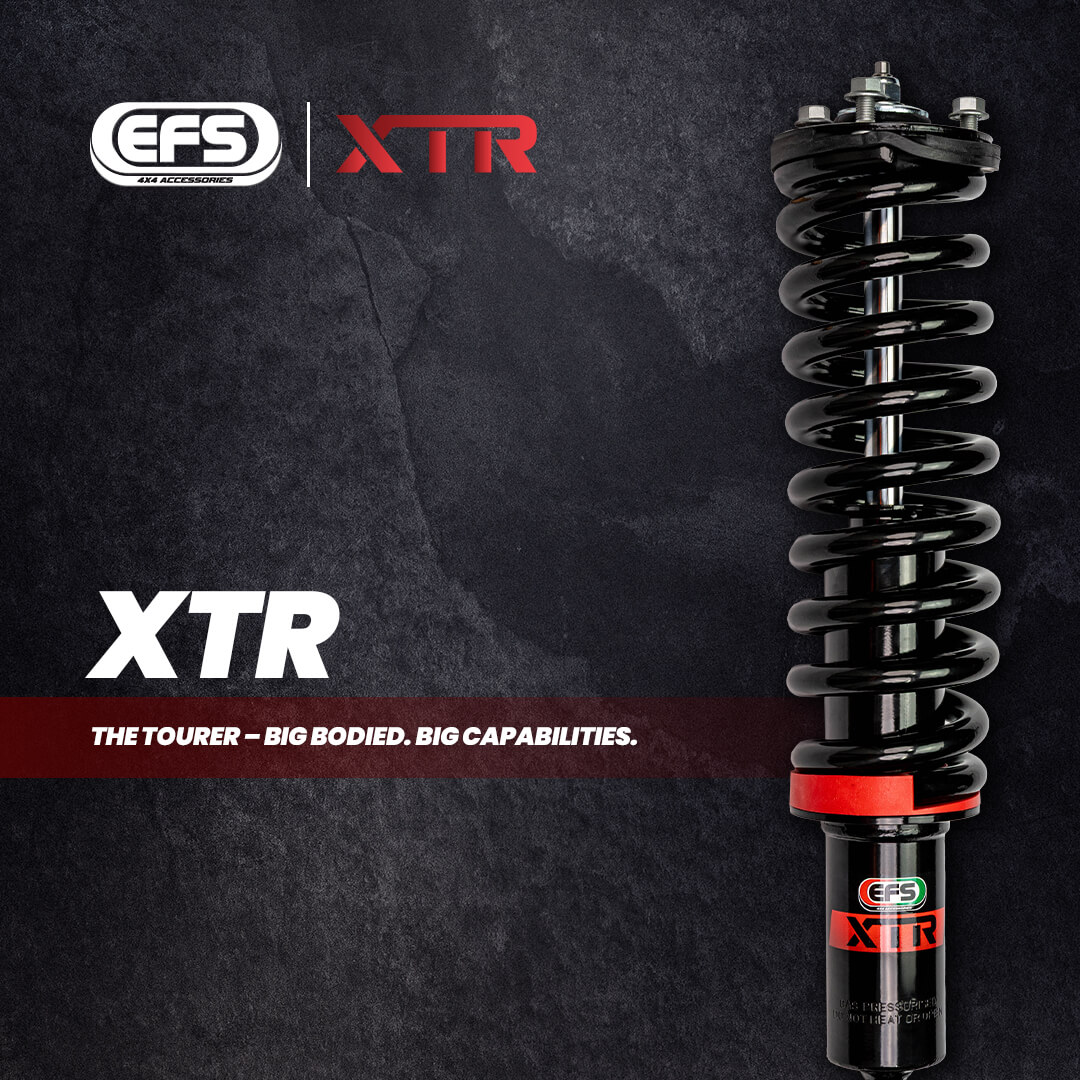

XTR — touring with a load
“It’s my daily, but we load it up for weekends away and one big trip a year.” XTR is built specifically for outback touring in a heavily laden 4WD. The external tube steps up to 64mm with a 40mm piston and 20mm rod — more oil, more control, and better heat management on long corrugated stretches where a lighter shock starts to fade.

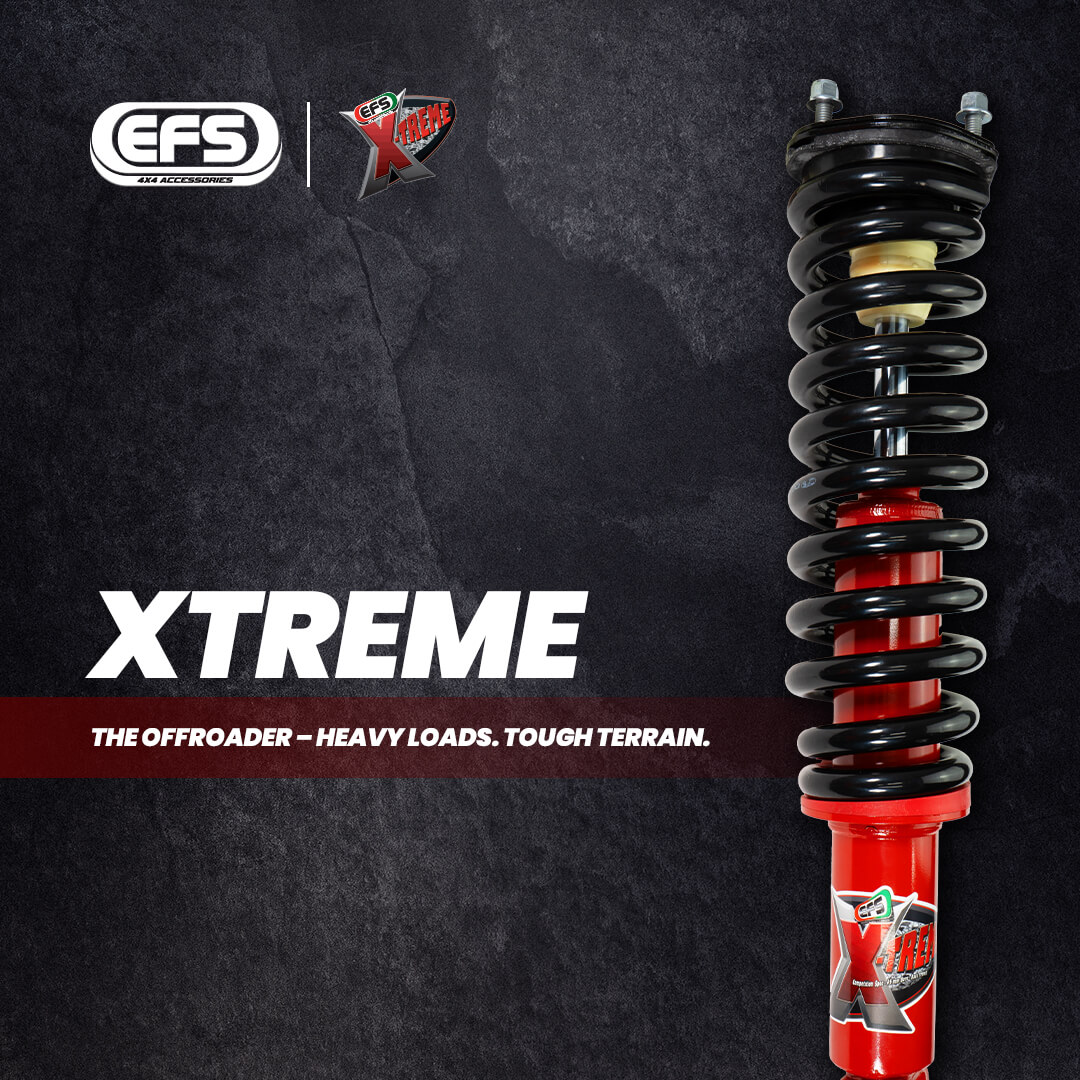

XTREME — heavy loads, harsh conditions
“We tow most weekends, we carry a lot, and we do a lot of off-road.” EFS’s premium twin-tube, originally developed out of 4WD competition and since refined for family touring. A large 45mm bore, internal hydraulic rebound stop, high-temperature fluid and multi-lip Viton seals — the details that matter when you’re doing hundreds of kilometres of corrugations fully loaded.

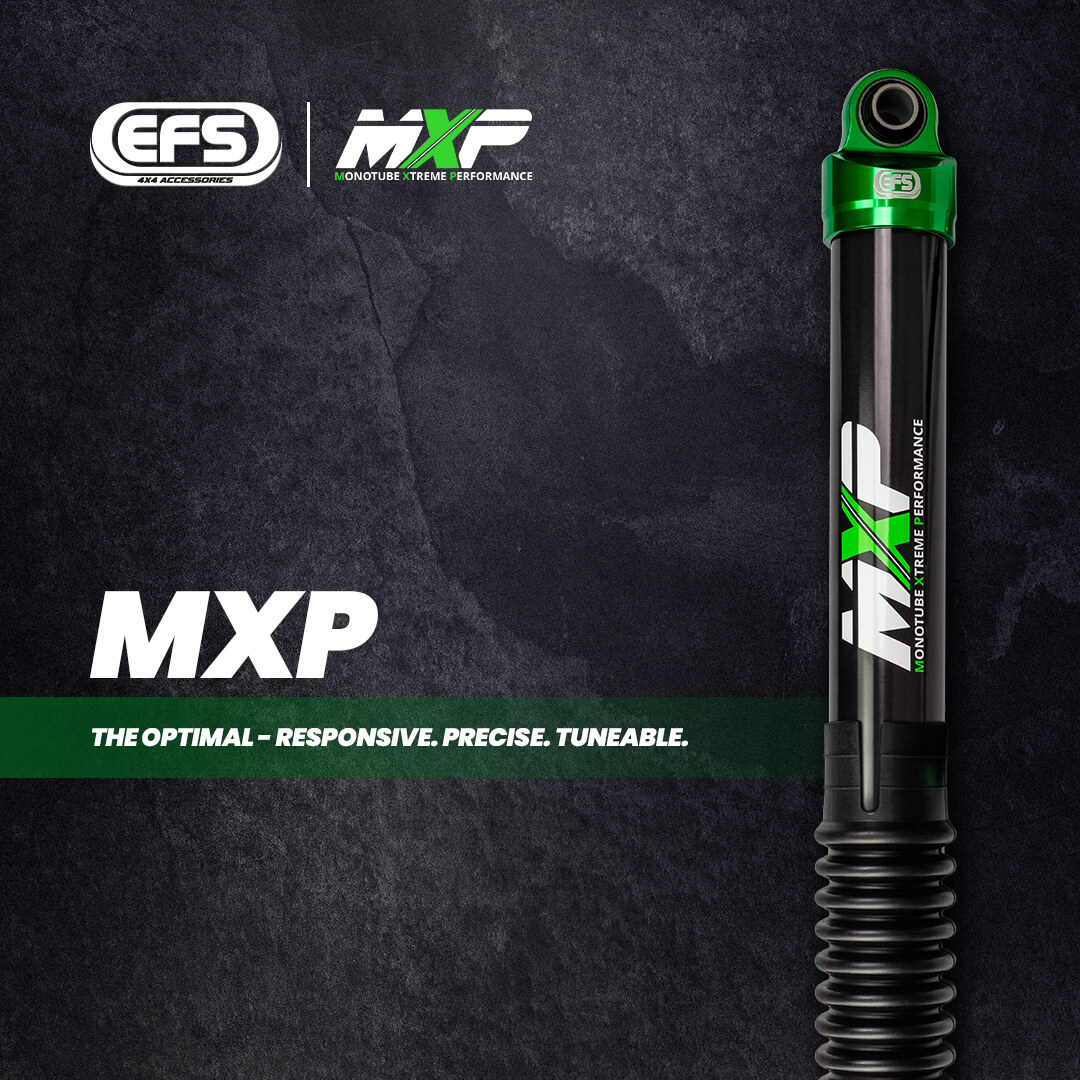

MXP — adjustable monotube
“I want more control and adjustability than a conventional shock.” A 2.5″ monotube with a 22mm rod and up to 30 stages of rebound adjustment, so you can dial the vehicle in for the load and terrain of the day. Bolts in as a direct fit, no cutting or modifications, and no external reservoir to package.

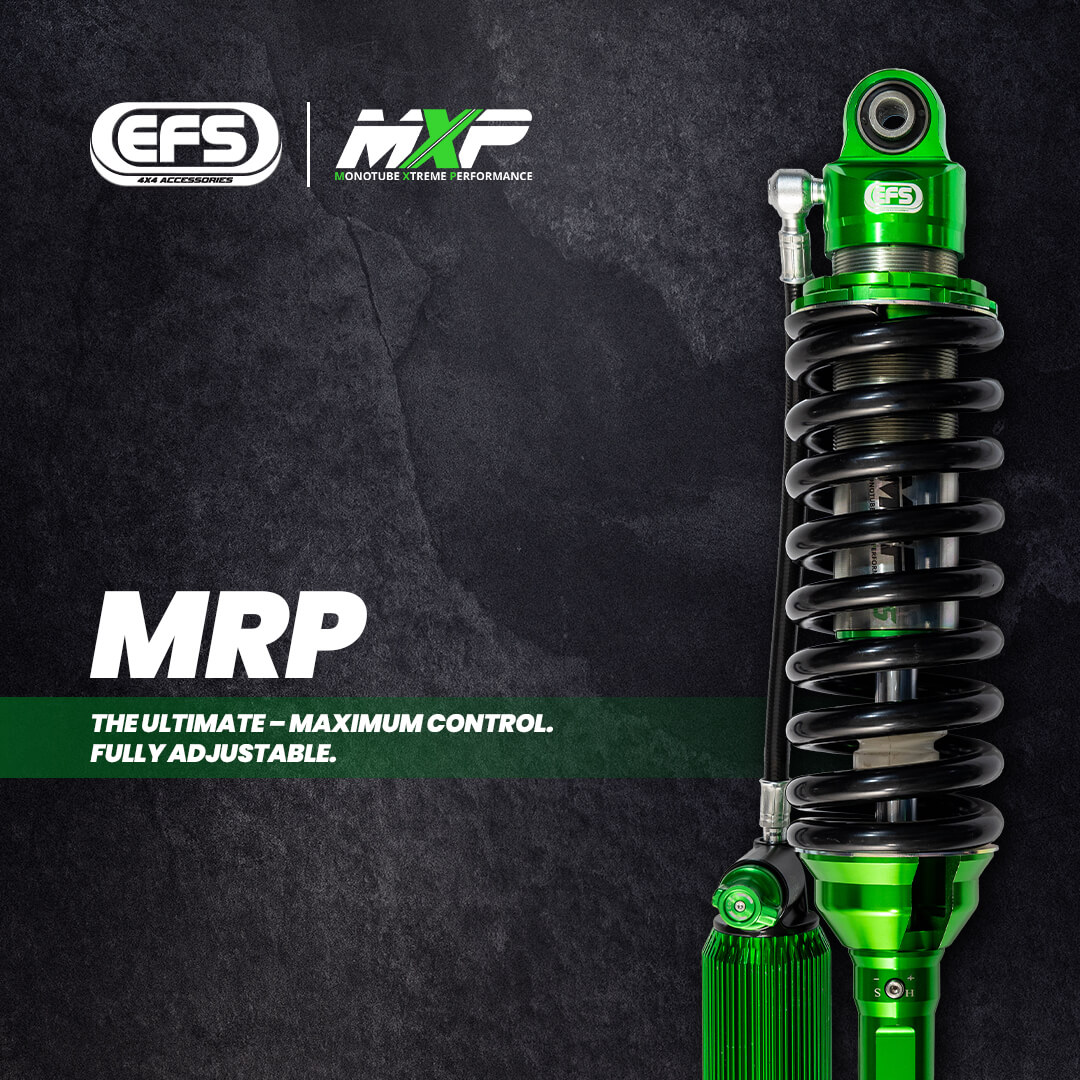

MRP 2.5 — maximum tuning control
“I want to tune my suspension to the terrain, the setup and how I drive.” EFS’s top-tier adjustable platform: CNC-machined billet aluminium, FUCHS suspension fluid for consistent performance hot or cold, vehicle-specific 3″ springs with height adjustment. For people who treat suspension setup as part of the build.

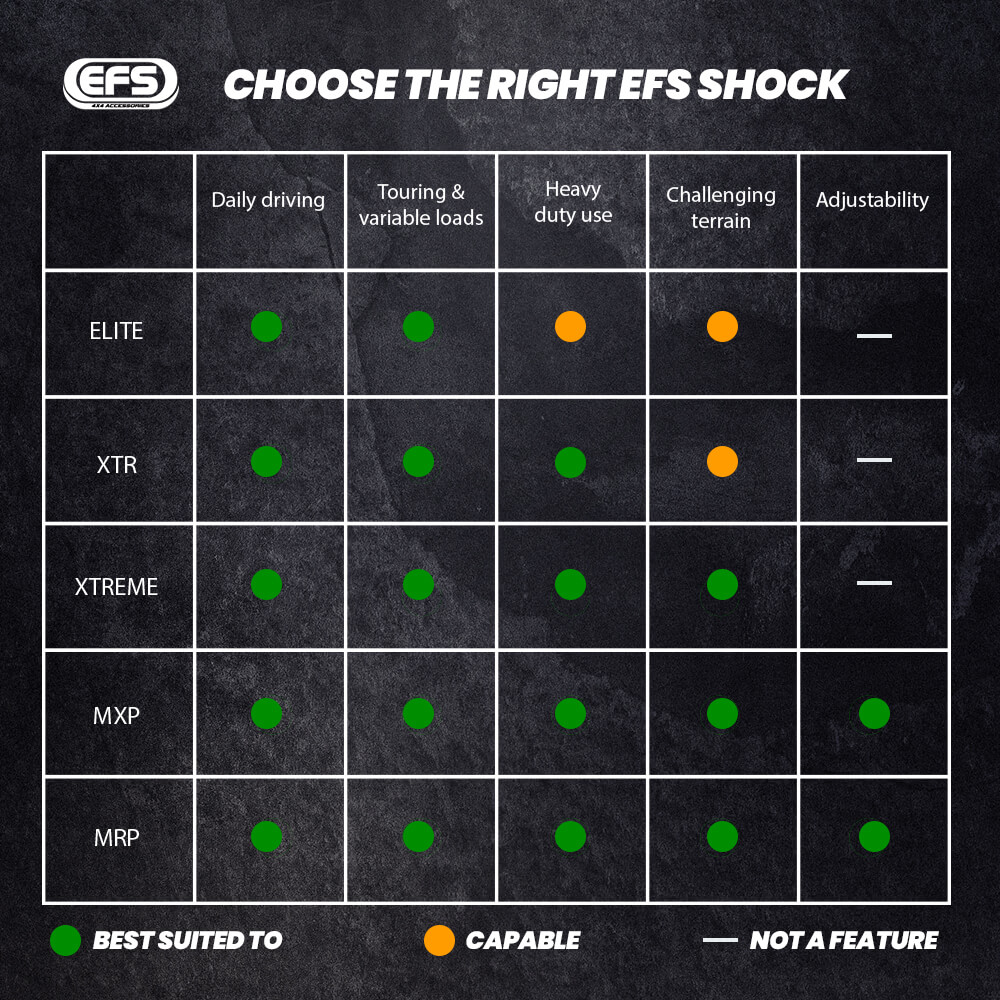

Where most people land
If you tow or carry weight, don’t under-buy — an under-damped shock working past its capacity is the one that fades on day three of a trip. If your 4×4 is mostly a road car, you don’t need the top of the range to get a big improvement over tired factory shocks.
Supplied AND fitted, locally
We fit EFS suspension in our own Ballarat workshop — not sent out to a third party — with a free courtesy car while it’s done. Shocks are ordered in to suit your vehicle, which is the right way around anyway: EFS valve to the specific model and ride height rather than building one shock to cover everything. We’ll also make sure the shock matches your springs, your height and how the vehicle is actually loaded, because a mismatched pair is where most ride complaints come from.
Get a recommendation
Text your rego and how you use your 4×4 to 0440 130 163 and we’ll tell you which EFS shock suits it and message back a price. Give us a call on 1800 486 922 with any questions or to place an order, or drop into 4 Carngham Rd, Ballarat.
